Open Source Firmware
Workshop

building coreboot, run emulations, flash firmware, start hacking

Disclaimer: You'll need to bring your own laptop. If you didn't, get it now.



License


Open Source Firmware Workshop by Patrik Tesarik is licensed under a Creative Commons Attribution 4.0 International License.

These slides & workshop is based on previous work done by:


  • Patrick Rudolph
  • Christian Walter
  • Felix Singer


 and would have not been possible without them

Content

Part I

  • What's firmware?
  • Why should I care?
  • coreboot intro
  • Hands-On: coreboot in QEMU

Part II

  • Flash IC
  • Programmers
  • Hands-On: Readout firmware from flash IC
  • Flash layout

Part III

  • Build coreboot for Apollolake
  • Hands-on: Build coreboot for UP²

  • Hands-on: Run coreboot on UP²

Optional:

Start hacking!

  • Hacker(wo)man: Build LinuxBoot payload and run it on UP²

Part I

What's firmware?

Firmware: Software that controls hardware

Host processor

firmware

We're going to hack on BIOS firmware

Why should I care?

Vendor firmware:



  • propriatary
  • buggy
  • slow
  • legacy technology

Remember:
Firmware controls our hardware

at sub-OS level

coreboot to the rescue

coreboot

open source firmware



  • R. Minnich & S. Reinauer @ 1999



  • Community project
    • mail  coreboot@coreboot.org
    • irc     #coreboot
    • slack #coreboot-dev



  • Active & upstream developement
  • QA & CI

coreboot's approach: Plattform initalisation

Bootblock

  • Partly written in Assembly, rest is C
  • Setup Cache-As-RAM
  • Set up Heap/Stack for C Environment
  • Decompress and load next stage
  • on x86:
    • Microcode updates
    • Switching from 16bit real mode to
      32bit protected mode

Romstage

  • Minimal Device Initialization
    • GPIO
    • UART
    • PCI/IO BAR
    • Timer init
  • DDR DRAM Training (~5secs per DIMM)
  • Store DRAM Training Results in MRC Cache
  • LZ4 Compressed

Postcar Stage

  • Late Cache-As-RAM shutdown
  • Only used on Intel devices.
  • Console Init

Ramstage

  • Memory Handling
  • PCI Device Enumeration/Resource Allocation
  • Device Init
  • Graphics Init
  • TPM Init
  • CPU Init
  • SMM Setup

  • ACPI Table Generation
  • SMBIOS Table Generation
  • Device Tree Patching

  • Platform Lockdown
  • The biggest stage in coreboot
  • Usually, LZMA compressed

Verstage

  • Only when verified boot is enabled
  • Installs a hook to verify a file/stage before it gets loaded.
  • Root-of-Trust

Part I: Hands-On

Hands-on: Build your toolchain

Hands-On: Build your Toolchain

$ git clone --recurse-submodules https://github.com/9elements/coreboot.git
$ cd coreboot

20 min

Clone coreboot repository and submodules:

Build the toolchain:

$ make crossgcc-i386 CPUS=`nproc`

Install the following packages:

apt install git make build-essential gnat flex bison libncurses5-dev \
wget zlib1g-dev acpica-tools patch pciutils-dev ccache qemu python \
uuid-dev nasm
dnf install git make gcc-gnat flex bison xz bzip2 gcc g++ ncurses-devel \
wget zlib-devel acpica-tools patch pciutils-devel ccache qemu python \
libuuid-devel nasm

Build System

coreboot

  • Same mechanism as in GNU/Linux
  • Kconfig
    • Defines dependencies
    • User-specific configuration in .config file
    • Lots of defaults
  • Makefile
  • Makefile.inc
    • Depends in Kconfig choices
    • Allows to skip building files

Build System

Build System

Build System

Hands-on

Compile coreboot for QEMU

Hands-On: Compile coreboot for QEMU

20 min

Select payload:

$ make menuconfig

Open the config menu:

$ make nconfig
$ make xconfig

Add a payload --> (None)

Build:

$ make

Run:

$ qemu-system-i386 -M pc -m 1024M -bios build/coreboot.rom -serial stdio

Part II

Flash ICs

How do they look like?

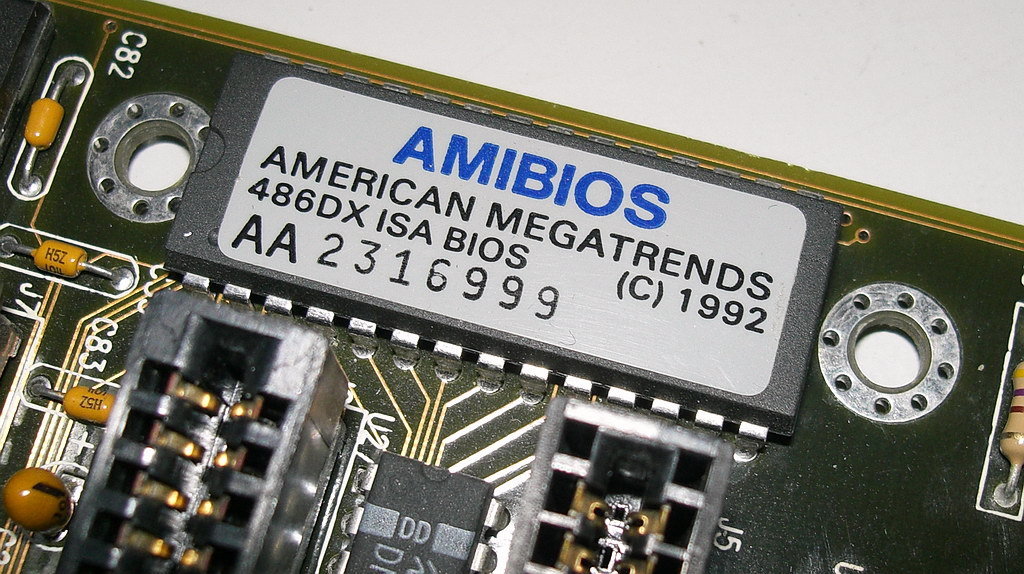

CC-by-SA Raimond Spekking

CC-by-SA Tobias ToMar Maier

CC-by-SA MOS6502

Flash ICs

  • Typical SPI / QSPI
  • SOIC-8 and WSON-8 common packages
  • Easily identified by colored point on the chip
  • 3.3V, 2.5V and 1.8V

1980

Today

64KB

512KB

4MB

16MB

512MB

  • Vendor specific
    • instructions
    • page size
    • block size
    • #blocks
    • software write protection
    • erasure time
    • OTP

Programmers

  • No external components
  • Needs Operation System drivers
  • Needs "Recovery mechanism"
  • Transparent flash IC
  • Very fast
  • "software based" write-protection might interfere
  • "hardware based" write-protection might interfere

internal

external

  • Needs external components
  • Hardware might interfere
  • Voltage / current limits
  • Support for flash IC
  • Slower
  • No recovery needed
  • "hardware based" write-protection might interfere

Programmers

internal

external

Baseboard Management Controller

  • Only on server platforms
  • Recovery mechanism
  • Very fast
  • High external component count
  • Also allows Serial-over-LAN
  • Good for debugging and testing

External Programmers

SF100

CC-By-SA Patrick Rudolph

External Programmers

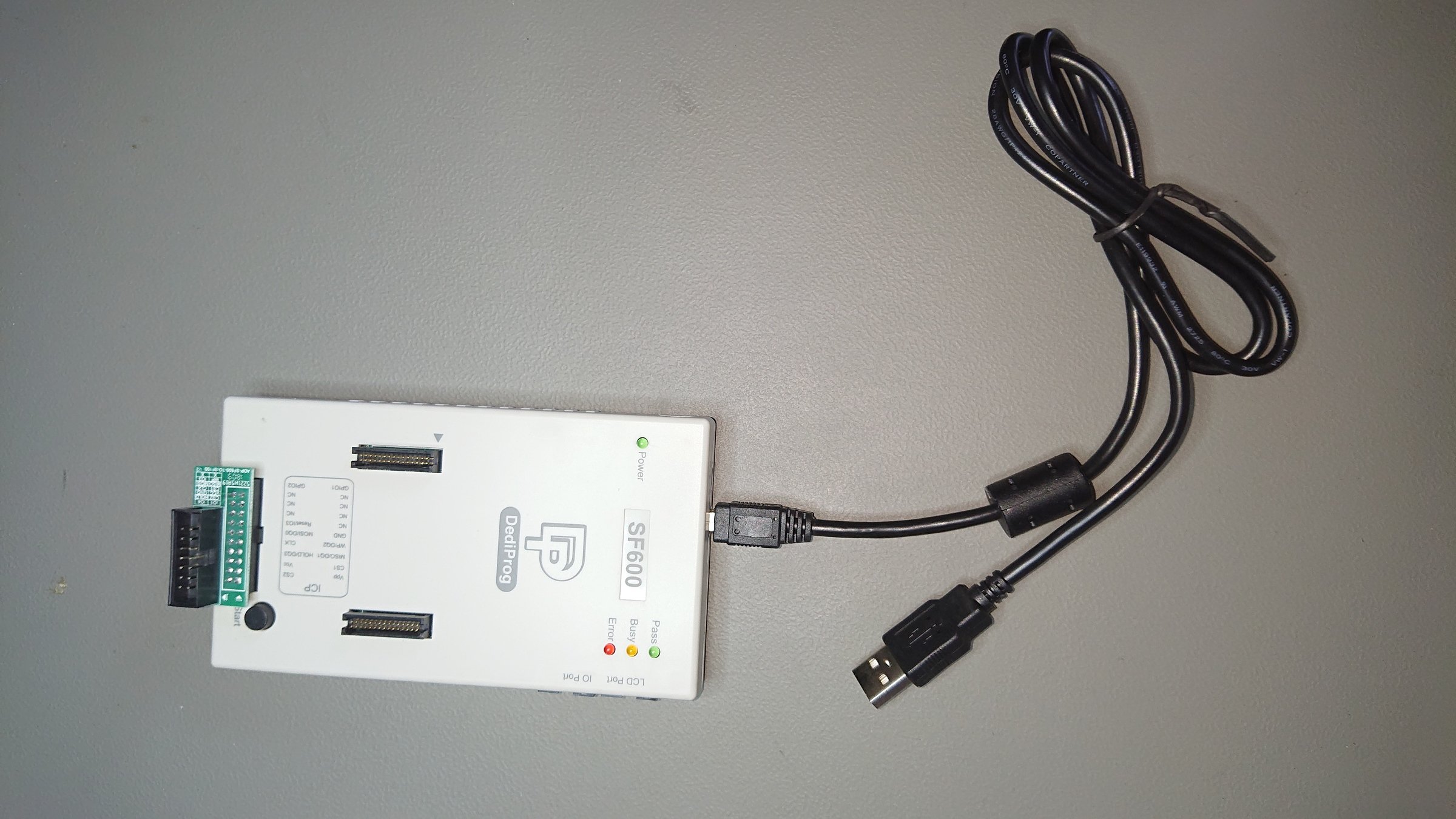

SF600

CC-By-SA Patrick Rudolph

CC-By-SA Patrick Rudolph

CC-By-SA Patrick Rudolph

External Programmers

for hackers: Raspberry PI

  • Native SPI interface
  • Ethernet
  • Uploads 16MiB in 10 seconds
  • GPIOs / UARTs / I2C
  • Short circuit might cause the CPU to reboot

CC-By-SA Patrick Rudolph

External Programmers

buspirate and SPI compatible

  • Cheap
  • Bit bang mode (1 bit per USB transaction)
  • Very slow
  • Very slow !
  • Uploads 16MiB in +30 minutes

External Programmers

wiring

  • Not safe to use external power supply
    • Try to use 'S3 resume' or 'WoL'
    • Might power the SoC
    • SoC might missbehave or read from flash ...
  • Make sure voltages are OK
  • Safe to apply external power
    • Doesn't power SoC

SPI flash IC

SPI flash IC

External Programmers

rules for wiring

  1. Make sure pinout is correct
  2. Make sure voltage is correct
  3. Use a current limited power supply
  4. Start with low frequencies
  5. Use short wires

https://doc.coreboot.org/flash_tutorial/index.html

UP²

UP²

  • Dual GBE
  • 3x USB3.0
  • USB OTG
  • SATA
  • M2/MiniPCI
  • Camera
  • LCD
  • 40 pin connector + FPGA for runtime pin mux
  • Intel Apollolake
  • 1.1 Ghz Dual Core
  • 1 MiB L2 cache
  • LPDDR3 / LPDDR4
  • Features
    • iTPM
    • BootGuard

CPU

Board

Hands-on:

Connecting an external programmer

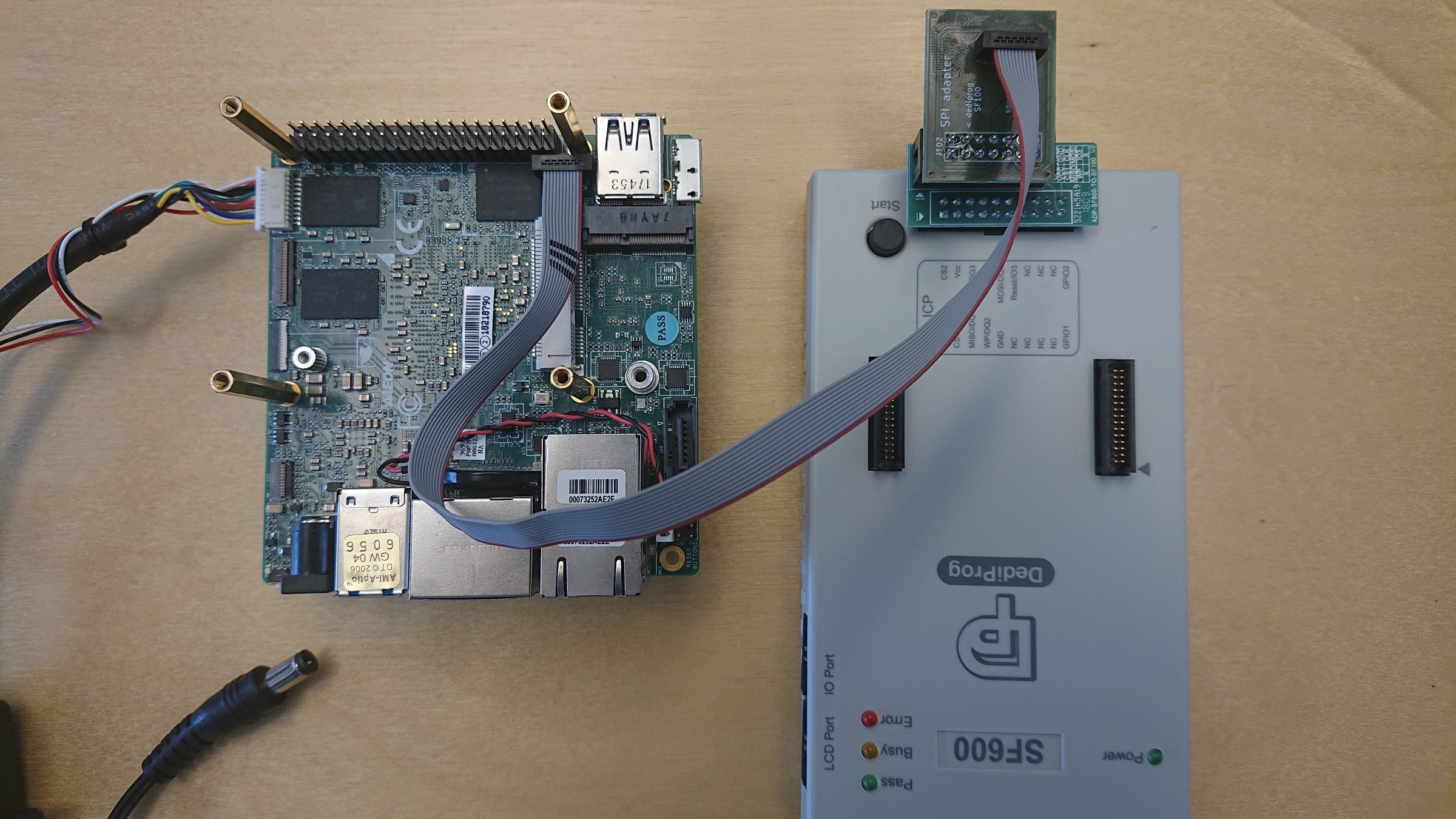

Hands-On: Connecting the external programmer

10min

Hands-On: Connecting the external programmer

flashrom

general

  • flash programmer interface tool
  • Developed by Carl-Daniel Hailfinger and Stefan Tauner for a long time
  • Core developers:
    • David Hendricks @ Facebook
    • Nico Huber @SecuNet
  • Supports
    • 476 flash chips
    • 291 chipsets
    • 500 mainboards
    • 79 PCI devices
    • 17 USB devices
    • various parallel/serial port-based programmers.
    • crossplatform

https://review.coreboot.org/flashrom.git

flashrom

advice reading firmware

  • Make sure no other bus master is active
  • Make sure not to power the whole board
  • Read twice and compare the BLOBs
  • Try to lower frequency on transmission errors
  • Do not use ATX power supplies

Hands-on: Dumping the vendor firmware

Hands-on: Dumping the vendor firmware

Task:

  • Run flashrom
  • Run flashrom again
  • Binary compare images

What you need:

  • UP² board
  • External programmer

20min

Hands-on: Dumping the vendor firmware

Reading the flash IC:

$ flashrom -pdediprog:voltage=1.8V -r /tmp/dump1.bin

$ flashrom -pdediprog:voltage=1.8V -r /tmp/dump2.bin

$ diff /tmp/dump1.bin /tmp/dump2.bin


Writing the flash IC:

$ flashrom -pdediprog:voltage=1.8V -w /tmp/backup.bin

Hands-on: Dumping the vendor firmware

Verify what you got:

$ cd coreboot/util/ifdtool
$ make
$ ./ifdtool -d /tmp/dump1.bin

Flash layout

IFD - Intel Flash Descriptor

  • Supported since ICH7
  • Contains:
    • Flash layout
    • Access permissions
    • Flash special instructions
    • OEM section
    • Number of flash ICs
    • Maximum SPI bus clock
    • predefined regions for bus masters
    • ...

IFD - Intel Flash Descriptor

but ...

  • No support for fine-grained updates
  • Vendor specific
  • Layout might change in the future
  • Not under firmware control
  • Starting with Skylake it has 20 regions

Flash layout on UP² vendor firmware

IFWI - Integrated Firmware Image

  • IFWI is a filesystem inside the bios region
  • Contains the TXE BLOB (usually separate region in IFD)
  • Contains the bootblock (usually at end of bios region)
  • At end of IFWI the OEM BootBlock partition is placed
  • OBB contains coreboot

Flash IC

OBB - OEM Bootblock

  • coreboot uses the whole OBB
  • APL specific: Last 256KiB aren't usable
  • Unused bootblock at end of COREBOOT(CBFS)

Flash IC

Flash layout

Warning

Vendor firmware uses two LBP, but coreboot uses one LBP

We have to patch IFD to support one LBP!

Part III

Build coreboot for Apollolake

  • You need Intel FSP 2.0
    • https://github.com/IntelFsp/FSP
    • Redistributable since 23th Aug 2018
    • Integrated into coreboot build system
    • Configuration values (UPD) are configured at runtime
    • Can be split into 3 parts:
      • FSP-T
      • FSP-M
      • FSP-S
  • You need microcode updates
    • Intel changed the license a few times
    • Redistributable since 23rd Aug 2018 (again)
    • The format changed from binary to the header in the past
    • Documentation on all sites could be improved
    • Without Microcode updates, nothing works!!!

Build coreboot for Apollolake

  • You need IFWI (BPDT partion)
    • Extract from vendor firmware
  • You need the IFD
    • Extract from vendor firmware

Build coreboot for Apollolake

Hands-on: Build coreboot for UP²

Hands-on: Build coreboot for UP²

Task:

  • Select mainboard UP > squared
  • Set path to FMAP
  • Select
    • Use Intel Firmware Support Package
    • Add Intel descriptor.bin file

What you need:

  • BLOBs
    • Intel IFWI
    • Intel IFD
    • Microcode BLOBs
    • FSP 2.0

30min

Task:

  • Build ./util/ifdtool/
  • Extract IFD regions using ifdtool
  • Generate a layout file using ifdtool

What you need:

  • coreboot ifdtool
  • UP² board firmware dump

10 min

Hands-on: Extracting the BIOS region

Hands-on: Extracting the BIOS region

$ util/ifdtool/ifdtool -x backup.bin

Extract regions from flash dump using the IFD:

$ make -C util/ifdtool

Build ifdtool:

Hands-on: Build coreboot for UP²

Place BLOBs at:

 $ mkdir -p 3rdparty/blobs/mainboard/up/squared/

Create a folder whithin coreboot:

  • 3rdparty/blobs/mainboard/up/squared/ifwi.bin

  • 3rdparty/blobs/mainboard/up/squared/descriptor.bin

Patch IFD at offset 0x1ff and set bit3!

Hands-on: Build coreboot for UP²

  • Select mainboard UP > squared
  • Set path to FMAP: src/mainboard/$(CONFIG_MAINBOARD_DIR)/upsquared.fmd

Set the following path in menuconfig:

  • Select Chipset
  • [*] Write content into IFWI region
  • Set path to 3rdparty/blobs/mainboard/$(CONFIG_MAINBOARD_DIR)/ifwi.bin
  • [*] Add Intel descriptor.bin file
  • Set path to 3rdparty/blobs/mainboard/$(MAINBOARDDIR)/descriptor.bin
  • Select Console
  • [*] Enable early (bootblock) console output
  • [*] Serial port console output
$ make

Hands-on: Build coreboot for UP²


fallback/postcar               0xb6800    stage           18272 none
fallback/dsdt.aml              0xbafc0    raw              5581 none
img/coreinfo                   0xbc600    simple elf      50932 none
fallback/payload               0xc8d40    simple elf      67438 none
payload_revision               0xd9500    raw               235 none
(empty)                        0xd9640    null         11125080 none
bootblock                      0xb757c0   bootblock       32768 none

Built up/squared (Squared)
Image written successfully to build/cbfs/fallback/ifwi.bin.tmp.
Image does not contain sub-partition OBBP(6).
Sub-partition IBBP(4) entry IBBL replaced from file build/cbfs/fallback/bootblock.bin.
Image written successfully to build/cbfs/fallback/ifwi.bin.tmp.
W: Written area will abut bottom of target region: any unused space will keep its current contents

Final output:

coreboot rom is placed:

./build/coreboot.rom

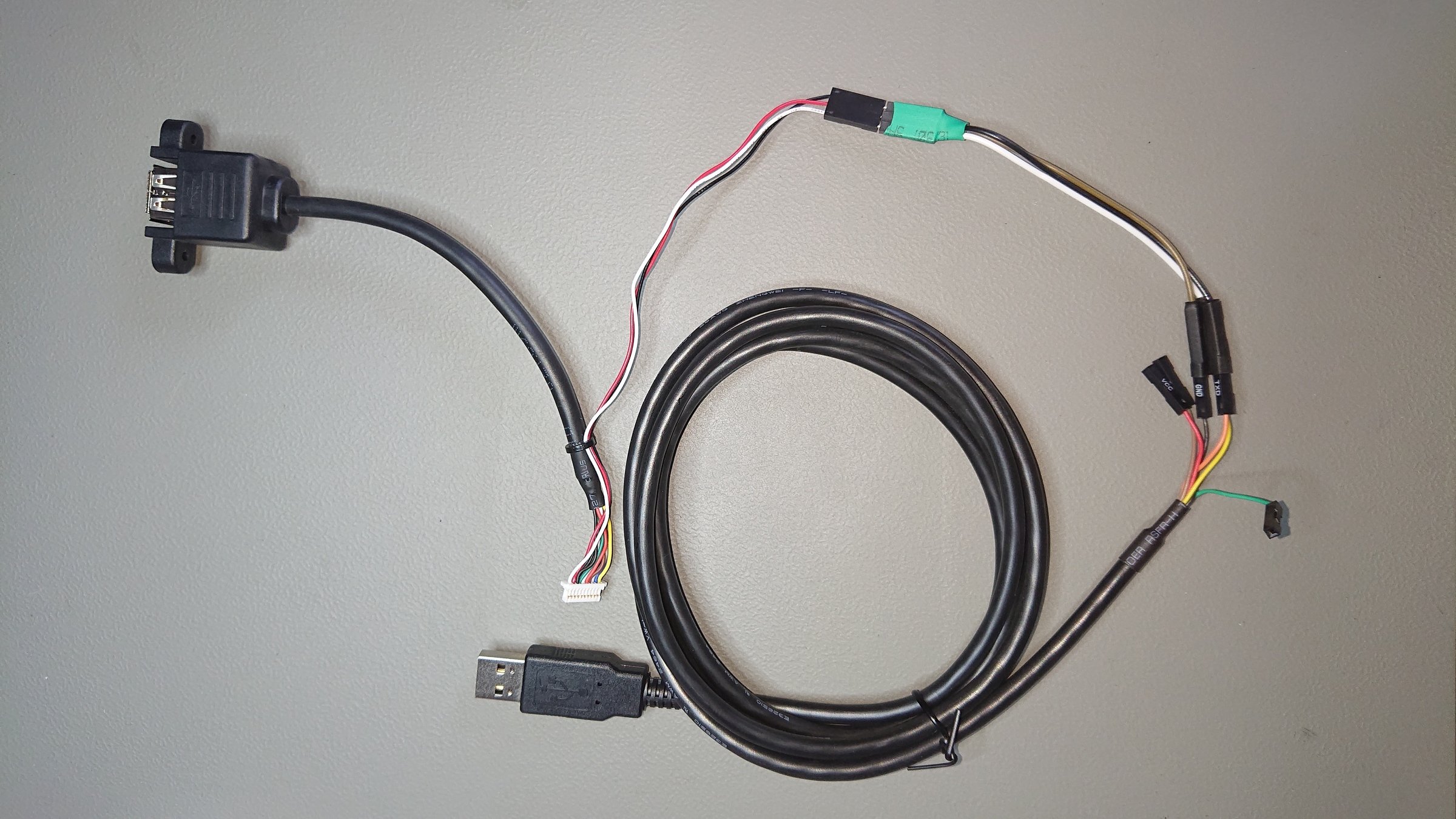

Hands-On: Connect the UART

Hands-on: Connect

the UART



2min

CC 4.0

CC 4.0

Hands-on: Run coreboot on UP²

Hands-on: Run coreboot on UP²

Task:

What you need:

  • coreboot.rom build for UP²
  • an external programmer
  • a 3.3V TTL serial adapter
  • Flash the coreboot.rom
  • Attach to the serial
  • Power the UP²
  • Watch the serial console

15min

Hands-on: Run coreboot on UP²

Flashing coreboot on UP²:

$ flashrom -pdediprog:voltage=1.8 --fmap -i COREBOOT -w build/coreboot.rom

Flashing update IFD on UP²:

$ flashrom -pdediprog:voltage=1.8 --ifd -i ifd -w build/coreboot.rom

Optional: Hacking

LinuxBoot

  • The idea of running Linux inside the firmware
  • Well tested drivers for anything
    • Graphics
    • USB
    • Input device
    • Block devices
    • SCSI devices
    • Network
    • EC/SuperIO
  • Easy to write application programs
    • You don't need firmware engineers
  • Project works with coreboot, UEFI and u-boot
  • If you are stuck with non-coreboot OCP HW look into the repository for LinuxBoot UEFI supported boards.
  • coreboot integration
    • Graphics output via KMS and VBT
    • Requires external toolchain (non x86)
    • EFI boot support
    • GRUB2 config support
    • Big payload size
    • Bigger attack surfaces
    • Drivers for VPD, CBMEM console and coreboot framebuffer are available

linuxboot.org

u-root

  • Golang initramfs generator
  • Only 4 go binaries
  • Has an init system and can start systemd
  • Supports source/bb build mode
  • Compiles everything into a initramfs.cpio
  • Supports libraries aka pkg/*
  • Is a coreutils replacement and tools can be found under cmds/*
  • Tooling is currently somehow complicated because the use of flags
  • Missing Golang kexec implementation for other than x86 but kexecbin is available

u-root.tk

Hands-on:

Build coreboot + LinuxBoot

Hands-on: Build LinuxBoot

Task:

  • Select LinuxBoot as payload
  • Compile a kernel and u-root
  • Build coreboot

What you need:

  • coreboot firmware for the UP²
  • A Go 1.9+ toolchain
  • A GNU-Linux toolchain



45min

Hands-on: Build LinuxBoot

  • Install a Go 1.9+ toolchain
  • Install a GNU-Linux toolchain

Note: The coreboot toolchain isn't used for Linux paylods

Hacking required:

Linux Kernel gets build with '-fstack-protector' in host toolchain.

This breaks booting the target kernel while loading x86/purgatory.

"Fix":

Disable stack-protection in Kconfig

Run:

$ cd payloads/external/Linuxboot/linuxboot/kernel-*

$ make menuconfig


Architecture-dependend options >
[ ] Stack Protector Buffer overflow protection

Run:

cd $your_coreboot_dir
make CPUS=$(nproc)

Hands-on: Build LinuxBoot

Additional Info:

 Flash Map

Hands-on: Creating a layout file

$ util/ifdtool/ifdtool -f layout backup.bin

Extract the layout from IFD:

Use the layout in flashrom:

$ flashrom -pdediprog:voltage=1.8 -w backup.bin -l layout -i bios

Starting with flashrom 1.0:

$ flashrom -pdediprog:voltage=1.8 -w backup.bin --ifd -i bios

FMAP - Flashmap

  • Developed by google in 2015
  • Vendor independent flash layout
  • Each region has multiple subregions
  • Converted by fmaptool
  • Can be referenced in coreboot
  • Build time sanity checks
  • Patches for flashrom pending

FMAP - Flashmap

$ cat /src/mainboard/up/squared/upsquared.fmd

FLASH 16M {
        SI_DESC@0x0 0x1000
        SI_BIOS@0x1000 0xefe000 {
                IFWI@0x0 0x2ff000
                OBB@0x2ff000 0xbff000 {
                        FMAP@0x0 0x800
                        UNIFIED_MRC_CACHE@0x800 0x21000 {
                                RECOVERY_MRC_CACHE@0x0 0x10000
                                RW_MRC_CACHE@0x10000 0x10000
                                RW_VAR_MRC_CACHE@0x20000 0x1000
                        }
                        CONSOLE@0x21800 0x20000
                        COREBOOT(CBFS)@0x41800 0xb7d800
                        BIOS_UNUSABLE@0xbbf000 0x40000
                }
        }
        SI_DEVICEEXT@0xeff000 0x101000 {
                DEVICE_EXTENSION@0x0 0x100000
                UNUSED_HOLE@0x100000 0x1000
        }
}

IFD vs FMAP

Flashing a single FMAP region

  • flashrom version 1.1 adds the --fmap option
  • allows to flash a single FMAP region

$ flashrom --fmap -i RW_SECTION_B -w coreboot.rom

Build coreboot for Apollolake

  • You need BLOBs
    • Some are not redistributable
      • VGA Options ROMs
      • Intel ME/Intel TXE
      • IFWI
    • Some are platform specific
      • GBE
      • Intel IFD
    • You can dump them from your hardware
      • Use flashrom -r backup.rom to read the full image

      • Use ifdtool -x backup.rom to extract Intel IFD and Intel ME

    • Copy BLOBs to 3rdparty/blobs

    • Integrate them into the build

BLOBs

  • Intel IFD
  • GBE
  • Intel ME/Intel TXT
  • BIOS
    • VGA Options ROMs
    • IFWI
    • uCode
    • FSP1.0/ 2.0

Where to find blobs:

FSP 1.0

FSP 2.0

36c3 coreboot workshop

By 9elements Agency GmbH

36c3 coreboot workshop

Getting started with the coreboot in software emulation and hardware flashing (UP²)

  • 333
Loading comments...

More from 9elements Agency GmbH
